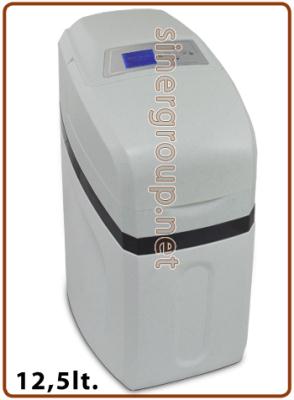

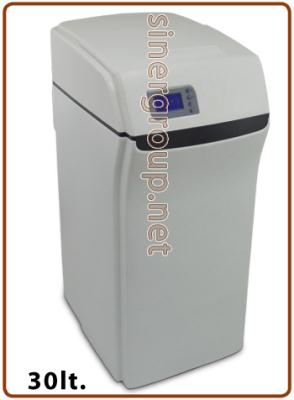

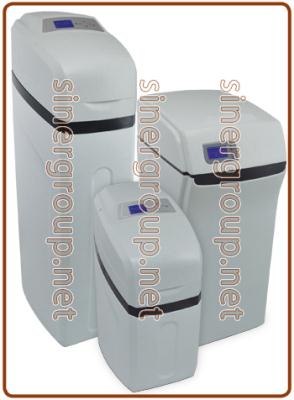

BXR water softener (Reg.metered-Time) 12,5 - 25 - 30 lt. resin

BXR
[email protected]

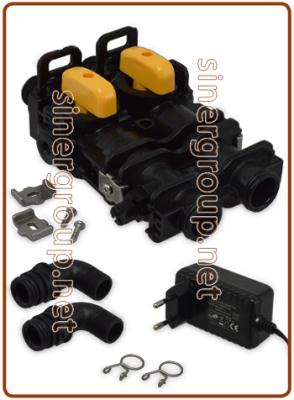

The BXR water softeners range make of simplicity their point of strength. They have a volumetric valve and can be setted with a mixed time/volume regeneration. The necessary operations for garantuee the correct functioning of the softener are to keeping power on all the time and remaining enough salt in brine tank. The only requirements for installation are three water pipe ports (inlet, outlet, drain) and power supply. Bypass and mixing valve to adjust the outlet hardness included in the system. Fuctions & features Automatic control valve - 24 hours control and monitoring with a timer, automatically regenerate the medial bed at the system’s set time of regeneration according to the set regeneration frequency or the water hardness and the balance volume. - Automatically calculate and design more scientific cycle plan according to the quality of supply water and the user’s actual water use. - Mixing valve to adjust the outled hardness included. - Cycle process: In service: supply water with suitable pressure and flow rate flows into softener, and the cations concernes to water hardness (Ca²+, Mg²+, etc.) in the water will be replaced by Na+ in regenerants, then the softening system supply softened water though its outlet. Backwash: when the ion exchange resins are out of effect, the resin bed needs to be regenerated. And before the regeneration of resin bed, a backwash step is absolutely necessarily for two main purposes: remove the residuals and resin shatters in resin bed, and loose the impacted resind bed for a better regeneration efficiency. Brine: under certain concentration and flow rate conditions, brine flow through entire resin bed, then the saturated resin will resume their softening capacity. Rinse: rinse the resin bed remove the residual regenerant (salt) in it after brine step until the water from outlet contains no regenerant; rinse could also impact the resin bed for a better softening effect. Fill: refill water to brine tank to dissolve salt for the next regeration. Components Automatic control valve: - Noryl plastic approved by FDA (U.S. Food and Drug Administration); - Strong corrosion resistance; stainless; - Innovative design; refined structure. Media: - High-grade anion exchange resin (food grade. FRP Vessel: - Polythene material manufactured for the food and beverage industries; - Light; high pressure resistance; stainless. Brine valve: - Reasonable structure, safe and reliable; - High pressure resistance. PE Brine tank: - Refill water and salt meet each other in the brine tank, and salt will dissolve continuously to water through natural convection until the water is saturated by salts. Power: - 100-240V 50/60Hz 12V. 0,6A max. (power supply) European Plug C Type Specifications Model 15000119-001 12,5lt. resin. (ideal for 2/3 people) * Exchange capacity: 62,5ºHFxm3. * Regeneration salt consumption: 1,50 kg/salt. * Water consumption for regeneration: 62,5lt. * Treated water for regeneration, 35°F-1,786m3, 40°F-1,563m3, 45°F-1,389m3, 50°F-1,250m3, 60°F-1,042m3. * Working flow 0,5m3/h * Working flow MAX 0,75m3/h * Dimensions mm (HxWxD) 650 x 310 x 440 Specifications Model 15000119-002 25t. resin. (ideal for 5/6 people) * Exchange capacity: 125ºHFxm3. * Regeneration salt consumption: 3 kg/salt. * Water consumption for regeneration: 125lt. * Treated water for regeneration, 35°F-3,571m3, 40°F-3,125m3, 45°F-2,778m3, 50°F-2,500m3, 60°F-2,083m3. * Working flow 1,0m3/h * Working flow MAX 1,5m3/h * Dimensions mm (HxWxD) 1140 x 310 x 440 Specifications Model 15000119-002 25t. resin. (ideal for 7/8/10 people) * Exchange capacity: 150ºHFxm3. * Regeneration salt consumption: 3,6 kg/salt. * Water consumption for regeneration: 150lt. * Treated water for regeneration, 35°F-4,286m3, 40°F-3,750m3, 45°F-3,334m3, 50°F-3,000m3, 60°F-2,500m3. * Working flow 1,2m3/h * Working flow MAX 1,8m3/h * Dimensions mm (HxWxD) 805 x 365 x 510 * We provide only businesses companies such as distributors, retailers, manufacturers and assemblers.
The BXR water softeners range make of simplicity their point of strength. They have a volumetric valve and can be setted with a mixed time/volume regeneration. The necessary operations for garantuee the correct functioning of the softener are to keeping power on all the time and remaining enough salt in brine tank. The only requirements for installation are three water pipe ports (inlet, outlet, drain) and power supply. Bypass and mixing valve to adjust the outlet hardness included in the system. Fuctions & features Automatic control valve - 24 hours control and monitoring with a timer, automatically regenerate the medial bed at the system’s set time of regeneration according to the set regeneration frequency or the water hardness and the balance volume. - Automatically calculate and design more scientific cycle plan according to the quality of supply water and the user’s actual water use. - Mixing valve to adjust the outled hardness included. - Cycle process: In service: supply water with suitable pressure and flow rate flows into softener, and the cations concernes to water hardness (Ca²+, Mg²+, etc.) in the water will be replaced by Na+ in regenerants, then the softening system supply softened water though its outlet. Backwash: when the ion exchange resins are out of effect, the resin bed needs to be regenerated. And before the regeneration of resin bed, a backwash step is absolutely necessarily for two main purposes: remove the residuals and resin shatters in resin bed, and loose the impacted resind bed for a better regeneration efficiency. Brine: under certain concentration and flow rate conditions, brine flow through entire resin bed, then the saturated resin will resume their softening capacity. Rinse: rinse the resin bed remove the residual regenerant (salt) in it after brine step until the water from outlet contains no regenerant; rinse could also impact the resin bed for a better softening effect. Fill: refill water to brine tank to dissolve salt for the next regeration. Components Automatic control valve: - Noryl plastic approved by FDA (U.S. Food and Drug Administration); - Strong corrosion resistance; stainless; - Innovative design; refined structure. Media: - High-grade anion exchange resin (food grade. FRP Vessel: - Polythene material manufactured for the food and beverage industries; - Light; high pressure resistance; stainless. Brine valve: - Reasonable structure, safe and reliable; - High pressure resistance. PE Brine tank: - Refill water and salt meet each other in the brine tank, and salt will dissolve continuously to water through natural convection until the water is saturated by salts. Power: - 100-240V 50/60Hz 12V. 0,6A max. (power supply) European Plug C Type Specifications Model 15000119-001 12,5lt. resin. (ideal for 2/3 people) * Exchange capacity: 62,5ºHFxm3. * Regeneration salt consumption: 1,50 kg/salt. * Water consumption for regeneration: 62,5lt. * Treated water for regeneration, 35°F-1,786m3, 40°F-1,563m3, 45°F-1,389m3, 50°F-1,250m3, 60°F-1,042m3. * Working flow 0,5m3/h * Working flow MAX 0,75m3/h * Dimensions mm (HxWxD) 650 x 310 x 440 Specifications Model 15000119-002 25t. resin. (ideal for 5/6 people) * Exchange capacity: 125ºHFxm3. * Regeneration salt consumption: 3 kg/salt. * Water consumption for regeneration: 125lt. * Treated water for regeneration, 35°F-3,571m3, 40°F-3,125m3, 45°F-2,778m3, 50°F-2,500m3, 60°F-2,083m3. * Working flow 1,0m3/h * Working flow MAX 1,5m3/h * Dimensions mm (HxWxD) 1140 x 310 x 440 Specifications Model 15000119-002 25t. resin. (ideal for 7/8/10 people) * Exchange capacity: 150ºHFxm3. * Regeneration salt consumption: 3,6 kg/salt. * Water consumption for regeneration: 150lt. * Treated water for regeneration, 35°F-4,286m3, 40°F-3,750m3, 45°F-3,334m3, 50°F-3,000m3, 60°F-2,500m3. * Working flow 1,2m3/h * Working flow MAX 1,8m3/h * Dimensions mm (HxWxD) 805 x 365 x 510 * We provide only businesses companies such as distributors, retailers, manufacturers and assemblers.
